Portable Thermocouple Temperature Sensor,
SS316 thermocouple detector,
SS316 Thermocouple Temperature Sensor
Screw In Thermocouple 304 Material Industrial Design Accurate Measurement
TY-S01 series thermocouple detector is used as a temperature sensor, usually in combination with display instruments, recording instruments and electronic regulators. It can directly measure the surface temperature of 0-1,800°C of liquid, steam, gas and solid surface in production processes.
TY-S series thermocouple is composed of two different conductor materials. The temperature difference between the measuring terminal and the reference terminal will result in thermoelectric potential, and the working instrument will display the corresponding temperature value.
1. TY-S series thermocouple Structure principle

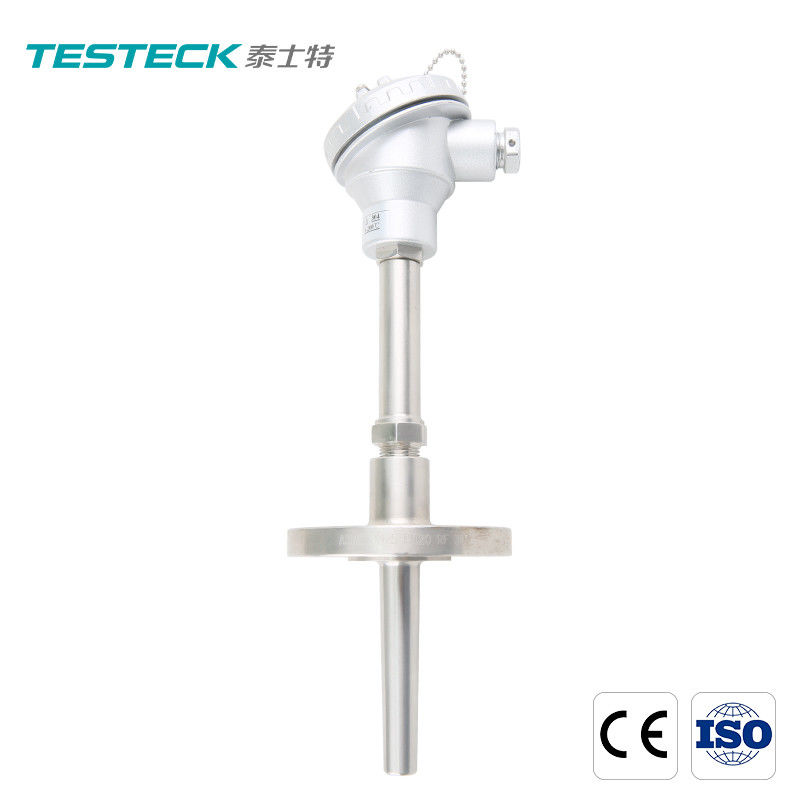

The industrial thermocouple is mainly composed of junction box, protective tube, terminal block, insulating ceramic column and temperature sensing element, and equipped with various installation and fixing devices.
1.1 Type of thermocouple: platinum rhodium 30-platinum rhodium 6, platinum rhodium 10-platinum, nickel chromium-nickel silicon, nickel chromium-copper nickel.
1.2 Protective tube: According to the type of thermocouple, the condition of the measured medium and the temperature to be measured, the tubes made of different materials are selected. The tubes of thermocouple are generally made of carbon steel, various grades of stainless steel, alloy steel and other materials.
1.3 Junction box: The junction box of thermocouple is used to connect the display instrument of temperature sensing element, generally made of aluminum alloy and stainless steel. It is divided into explosion-proof, waterproof and small splash-proof structures.
1.4 Wiring board: The wiring board of thermocouple is generally made of ceramics and installed in the junction box. It is the signal output terminal of the thermocouple, and divided into two types: single-branch type and double-branch type.
1.5 Installation and fixing device: The installation and fixing device is for users to install and fix thermocouple. It is divided into various forms, such as no fixing device, fixed thread, movable flange and fixed flange.
1.6 Nominal pressure
Generally it refers to the static external pressure that the tube can withstand without breaking under the working temperature. In fact, it is not only related to the tube material, diameter, and wall thickness, but also related to the structure, installation method, insertion depth, and the flow rate and type of the medium to be measured.
For more non-standard customized products, please consult Shenzhen Testeck Science and Technology Co., Ltd.
2. Product parameters
For the thermocouple, the ambient temperature is 20±15℃, the relative humidity is not more than 80%, and the test voltage is 500±50V (DC). The insulation resistance between the electrode and the outer tube is ≥1,000MΩ.m, that is, the insulation resistance of the 1m and 10m long sample are 1,000MΩ and 100MΩ respectively.
|TY-S series||Thermocouple - junction box|
|Type||K, E, T, S and J|
|Accuracy class||Class 1, 2|
|Ambient temperature in application||Refer to temperature measurement range and tolerance|
|Structure of sensor||SingleDouble|
|Protective tube material||SUS304, SUS316, SUS321 (customer specified)|
|Process connection||No fixing device, fixed thread, movable flange and fixed flange|
3. Application of company products
Thermocouple sensors are widely used for temperature measurement and controling in aviation, nuclear energy, petrochemical, metallurgy, machinery, electric power industries and technical areas, which are consists of two conductors of different materials that produce a voltage in the vicinity of the point where the two conductors are in contact.
4. Our Services & Strength
-- Experienced R&D and production engineers
-- Well organized production line
-- Complete quality control system
-- Responsive and strong support team for ongoing improvement and changes.
-- Passion for continued alliance with our clients to help them shape and achieve their future visions and strategies.
5. Product Structure
Contact Person: ALix
