Testeck Ltd.
Temperature sensor and low smoke halogen free flame retardant high temperature cable manufacturer:www.testeck.com/
 |
| Place of Origin: | China |
| Brand Name: | Testeck |
| Certification: | CE，IOS |
| Model Number: | TY-C03 |
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | Agree |
| Packaging Details: | Customized packing |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 pieces each month |
| Probe Length: | According To Customer Requirements | Graduation: | PT100 |
|---|---|---|---|
| Diameter Of Protective Tube: | Can Be Customized As 8, 10, 12, 20, 25, Etc. | Pipe Material: | 2520 (310S), 201, 304, 316, Gh3039, Etc |
| Installation Method: | Contact Customer Service | Length Of Extension Line: | PT100 |
| High Light: | Rtd Pt100 Temperature Sensor,Pipeline Thermocouple Rtd Pt100,Pipeline Rtd Temperature Sensor |
||

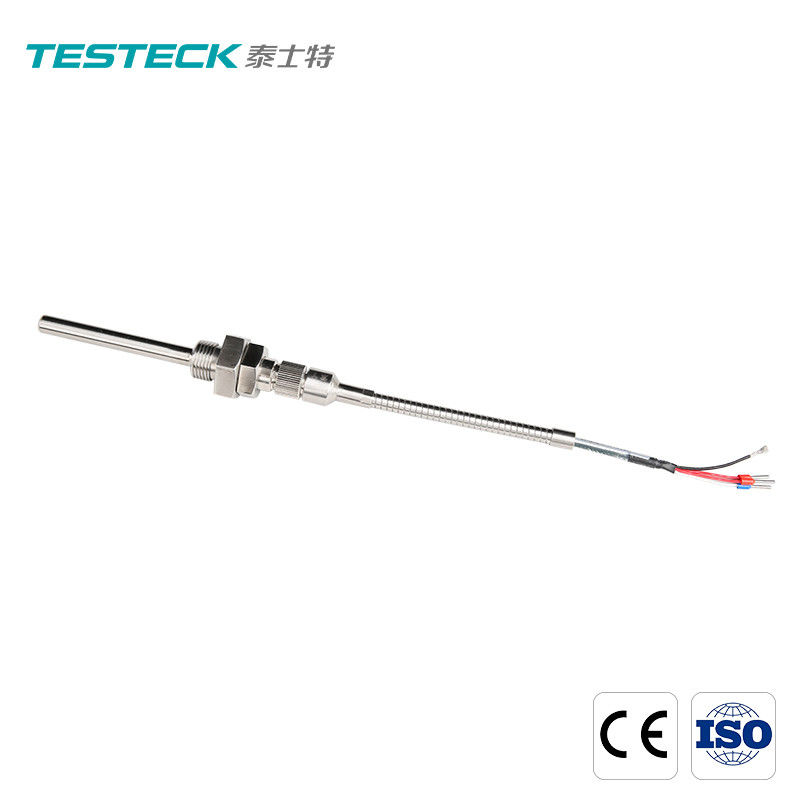

Pipeline Thermocouple Rtd Pt100 Temperature Sensor With Sleeve
Temperature Sensor With Sleeve For Pipeline Temperature Measurement
The sensor is dismantled without stopping to realize the rapid disassembly and assembly of the sensor. The temperature sensor of the double-tube structure is adopted at the measuring points of the air temperature, water pipeline and oil pipeline.
Pipeline and auxiliary temperature sensor
1. Product Introduction of the Pipeline and auxiliary temperature sensor
Steam temperature before and after desuperheater of steam system
The steam temperature before and after the desuperheater is generally high-temperature and high-pressure welded temperature sleeves, and the sleeve material is the same as the pipe material. Usually use Φ5 or Φ6 armored components for temperature measurement.
Boiler steam temperature
The boiler steam temperature measurement points include the steam temperature at the outlet of the superheater and the steam temperature at the outlet of the reheater. Generally, welded integrally drilled temperature casing or high temperature and high pressure type temperature casing are used, and the material selection is the same as that of the pipe
2. Product Parameter (Specification) of the Pipeline and auxiliary temperature sensor
| Accuracy | ＜±0.5℃ | Number of cores | 6 |
| Output signal | PT100 | Plugging times | 2000 |
| Operating temperature | -50 -- 200℃ | Operating Humidity | <90% |
| Relative humidity | 0%~95% | Degree of protection | IP68 |
3. Application of the Pipeline and auxiliary temperature sensor
Used for monitoring the air temperature of the air cooler of the turbine, the temperature of the cooling water pipeline and the oil pipeline
4. Product Feature
1. Output: 2-Wires
2. Cable Color: Black/White
3. Type: Stripped Soldcred
4. Temperature Range: -50 -- 200℃
5. B Value Accuracy: 1%-5%
6. Wire Ending: Semi-Stripped
7. Custom-made available
8. Pipe clip-on
9. Easy mounting
10. Easy install
5. Product Details of the Pipeline and auxiliary temperature sensor
The sensor is dismantled without stopping to realize the rapid disassembly and assembly of the sensor. The temperature sensor of the double-tube structure is adopted at the measuring points of the air temperature, water pipeline and oil pipeline.
6. delivery, shipment and service of temperature sensors
The temperature sensor is packed in cartons. If you need, we can also make it for you.
7. FAQ
1, are your manufacturer?
We are manufacturer, our factory localed in Shenzhen China.
2, what product you manufacturer have?
Our factory produce temperature sensor for power station,
Stators and cable for industry.
3, how many production lines do you have?
We have 10 production lines in Shenzhen factory.
4, how do you ensure product quality?
We already built a mechanical,electrical,fire and flame retardant laboratory, professional testing engineers.
5, can you send samples?
Yes, we will supply sample before your make the order.
