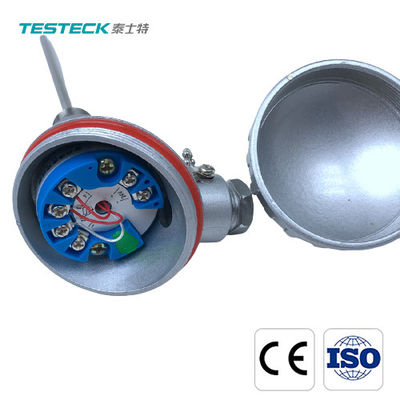

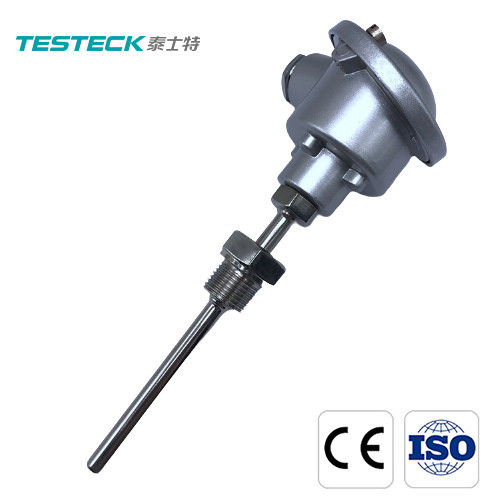

Armored Pt100 Temperature Sensor Transmitter Probe Type IP65

Armored Pt100 Temperature Sensor Transmitter Probe Type IP65

Armored Pt100 Temperature Sensor Transmitter Probe Type IP65
Armored Pt100 Temperature Sensor Transmitter Probe Type IP65
Armored Pt100 Temperature Sensor Transmitter Probe Type IP65
Product Details:
Place of Origin: China
Brand Name: Testeck
Certification: CE,ISO
Model Number: TY
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Agree
Packaging Details: Customized packing
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5000 pieces each month
Contact Now
Detailed Product Description
Ambient Temperature: -40℃~85℃ Output Signal: 4~20mA
DC Power Supply: 12-30V DC, Rated Voltage 24V DC Conversion Accuracy: ≤ 0.2%
Transmission Mode: Two-wire System Material Of Temperature Probe Rod: Stainless Steel Material
High Light:

Armored Pt100 Temperature Sensor Transmitter


SS Pt100 Temperature Sensor Transmitter


IP65 Armored Temperature Sensor

Temperature sensor transmitter probe type thermocouple pt100 temperature transducer


Product Description


HDT-300 armored temperature sensor utilizes the characteristic that the resistance of platinum resistance changes with temperature change, and has a certain functional relationship to measure the temperature of the measured medium. HDT-300 temperature sensor adopts imported platinum resistance with high performance and high reliability. The shell is made of all stainless steel integrated processing, which has the characteristics of small volume and fast thermal response. The wire uses special shielded wire and the temperature range is wide. The product is easy to install. It has extremely high vibration and shock resistance.

HDT-300 armored temperature sensors are commonly used in petroleum machinery, chemical machinery, pumps and compressors, power, boilers, natural gas and other automated temperature measurement and control systems, directly measuring liquids and gases in the range of -50 ℃ ~ 250 ℃ The temperature of the medium and solid surface.


Product Features:

  • High strength, anti-vibration, anti-high pressure
  • Fast response
  • Explosion-proof grade: intrinsically safe ExiaⅡCT6
  • Strong anti-interference and good long-term stability
  • Easy to install and use
  • Index number: Pt100, Pt1000 optional

Applicable Scope:

  • Pipe and ventilation systems
  • Hydraulic and pneumatic systems
  • Cooling and heating systems
  • Water supply and water heating systems
  • Air-conditioning systems
  • Automation system temperature mensuration and control



Range -50 ℃ ~ 250 ℃
Indexing number Pt100, Pt1000 optional
Output signal 4-20mA, 0-10v, rs485, etc


Thermal error basic error limit:


Platinum resistance level: Class A
0 ℃Resistance value (Ω) : 100 ± 0.06

Allowable deviation value ℃:

± (0.15 + 0.002ItI)

Allowable current ≤5mA
Insulation strength 100MΩ / 250VDC
Long-term stability ≤0.2% FS / year
Thermal response time ≤30s
Inserting depth ≥10mm (special requirements can be negotiated)
Insert diameter Φ8mm (special requirements can be negotiated)
Explosion-proof grade Intrinsically safe ExiaⅡCT6
Enclosure protection IP65
Electrical connection Direct lead

Armored Pt100 Temperature Sensor Transmitter Probe Type IP65 0Armored Pt100 Temperature Sensor Transmitter Probe Type IP65 1
